STMicroelectronics unit-gain stabilized amplifier

三月 14 2023 2023-03 Semiconductors STMicroelectronics

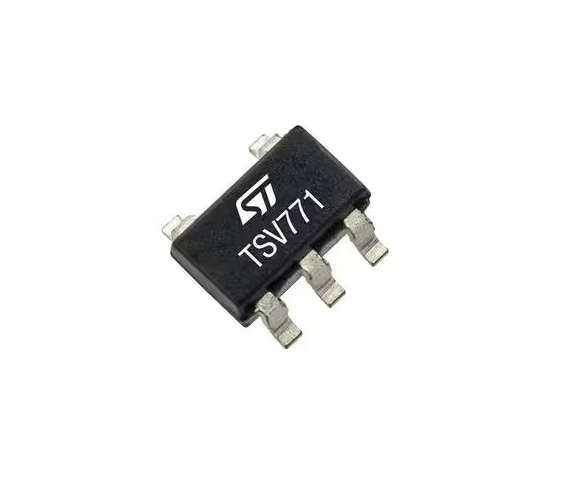

Article Cover
Stmicro's TSV771 is a 20 MHz bandwidth unit-gain stabilized amplifier. The rail-to-rail input stage and 10.5V /µs conversion rate make it ideal for low-side current measurements.

STMicroelectronics's TSV771 is a 20 MHz bandwidth unit-gain stabilized amplifier. The rail-to-rail input stage and 10.5V /µs conversion rate make it ideal for low-side current measurements.



The excellent accuracy provided by the maximum input voltage of 200μV allows precise amplitude-size input signals. The TSV771 can operate on a single power supply from 2.0V to 5.5V and has an output capacitance of 47 pF, making it easy to use as an input buffer for a /D converters.



Features

● Gain bandwidth product: 20 MHz, unity gain stable
● Low input offset voltage: 50 µV typ., 200 µV max.
● Low input bias current: 2 pA typ.
● Low noise: 7 nV/√Hz
● Slew rate: 13 V/µs
● Wide supply voltage range: 2.0V to 5.5V
● Rail-to-rail input and output
● 4 kV HBM ESD tolerance
● Input common-mode range includes low rail
● Extended temperature range: -40°C to +125°C
● Automotive grade versions available



Applications

● High bandwidth low-side and high-side current sensing
● Photodiode amplifiers
●A/D converters input buffers
● Power management in solar-powered systems
● Automotive high bandwidth signal conditioning
● Active filters
